DONSANG Machinery

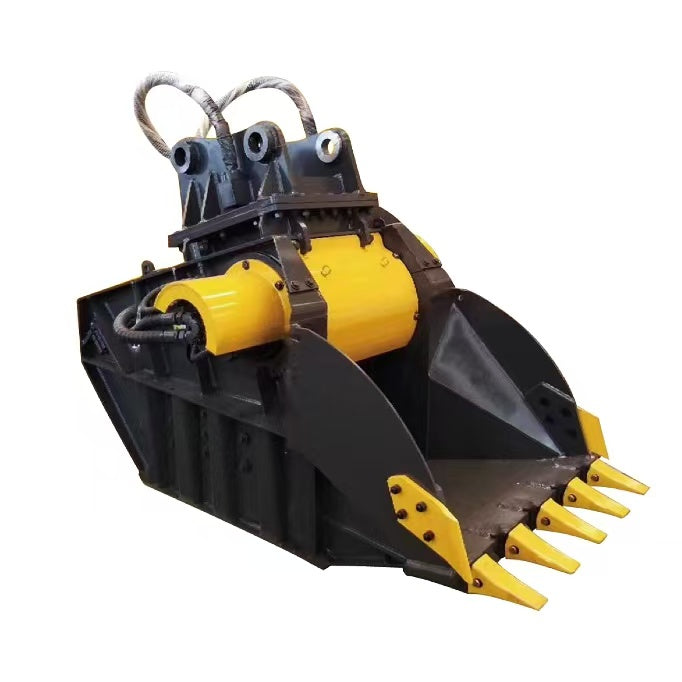

Crusher Bucket

Crusher Bucket

Sale Sold out

DONSANG Bucket Crusher ：

Model Unit DS100 DS200 DS300 DS500
Suitable Excavator Ton 10-18 18-26  30-45 50-70
Bucket Capacity M3 0.45 0.74 1.15 1.47
Oil Flow L/min 180 260 260 450
Feeding Size MM 400x550 500x700 500x1000 670x1150
Adjustment Diamension MM 1617x1055x1313 2506x1325x1731 2346x1576x1665 2882x2105x2137
Weight KG 1359 3450 4220 6850

  • By reversing the rotation,clogged materials can be easily released.
  • The  upper and lower jaw plates can be exchanged with each other,the rear and front sections can also be exchanged.we are using direct drive system which makes maintenance much easier.
  • The reinforcing bars can be easily removed from crushed reinforcement and this product requires drain line.
