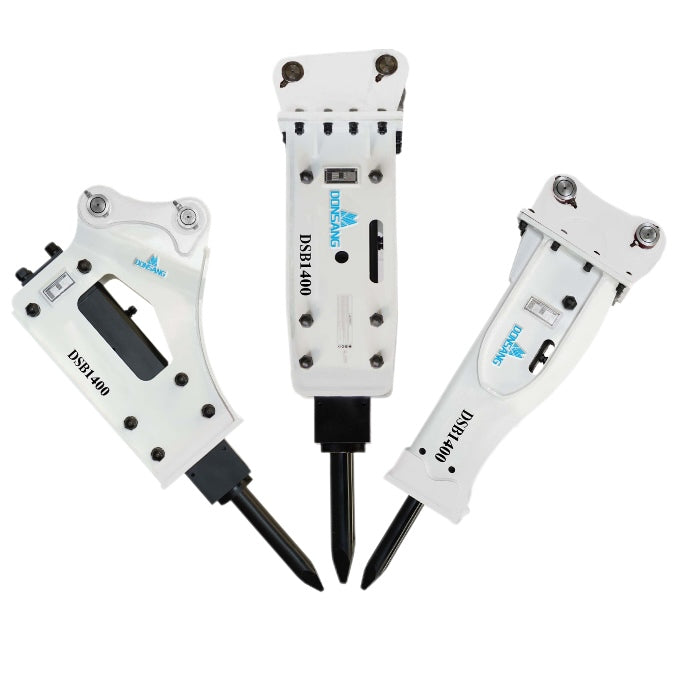

Hydraulic Breaker Suitable Medium Excavator

Hydraulic Breaker Suitable Medium Excavator

Sale Sold out

DONSANG Medium Hydraulic Breaker：

Application：

-Mining excavation: Efficiently breaks hard rocks and ores, reducing primary crushing steps and improving overall efficiency.

-Road construction: Breaks old pavements and prepares roadbeds for new construction.

-Building demolition: Precisely dismantles concrete structures with minimal impact on surrounding environments。

-Water conservancy projects: Removes rocks and obstacles from rivers and channels, ensuring smooth operation of water facilities.

-Specialized tasks: Includes industrial facility dismantling, water and gas pipeline construction, and emergency rescue operations.

Hydraulic Breaker Suitable Medium Excavator:

Item Unit DSB600 DSB800 DSB1000 DSB1400
Total Length Side mm 1330 1699 1767 1939
Top mm 1641 1890 2160 2339
Box mm 1658 1920 2200 2400
Operation
Weight		 Side kg 281 474 618 826
Top kg 292 494 604 920
Box kg 348 504 675 978
Working Puressure kg/m3 110-140 120-150 130-160 140-170
Required Oil Flow l/min 40-70 50-90 60-100 80-120
Impact Rate bpm 450-950 400-800 400-800 400-630
Nitrogen bar 14-17 14-17 14-17 14-17
Chisel Diameter mm 68 75 85 100
Hose Size inch PF1/2" PF1/2" PF3/4" PF3/4"
Suitable Carrier ton 1.4-8.0 6.0-9.0 8.0-12.5 12-15



NONE - SCRATCHING OF THE VALVE & PISTON SUPERIOR OF THE PISTON TECHNOLOGY
It's new tech for the breaker piston and valve. During the last 3 years of testing, as well as after our special heat treatment tech, the piston and valve have obviously had better performance: from a 5% scratching problem reduced to 0.5%. The users are happy that their tools are more stable for supporting their work, and the dealers are happy that they can save more time to serve other scope products.


ANTI - BLANKET FIRING
The piston moves back and forth and strikes by using hydraulic oil pressure and nitrogen gas. In case of blank firing, internal components such as the front head rod pin and through bolt can be damaged by striking internal components, and the lifespan of the product will be shortened due to repeated frictional heat and impact. The system consists of the chisel piston, low-pressure port, high-pressure port, control valve, nitrogen chamber, etc. When the piston is out of the normal strike position, the anti-blank-firing system is automatically opened, and the upper chamber of the piston is filled with high-pressure fluid.


UNDERWATER WORKING
Our breaker also has the waterproof function for your underwater working conditions.


ABSORBING THE VIBRATION OF THE BREAKER WORKING
Our new technology devices enhance your breaker’s life term longer. It is an imported technology, tested in Europe, and mainly used for mining sites.
