Hydraulic Shear

Hydraulic Shear

Sale Sold out

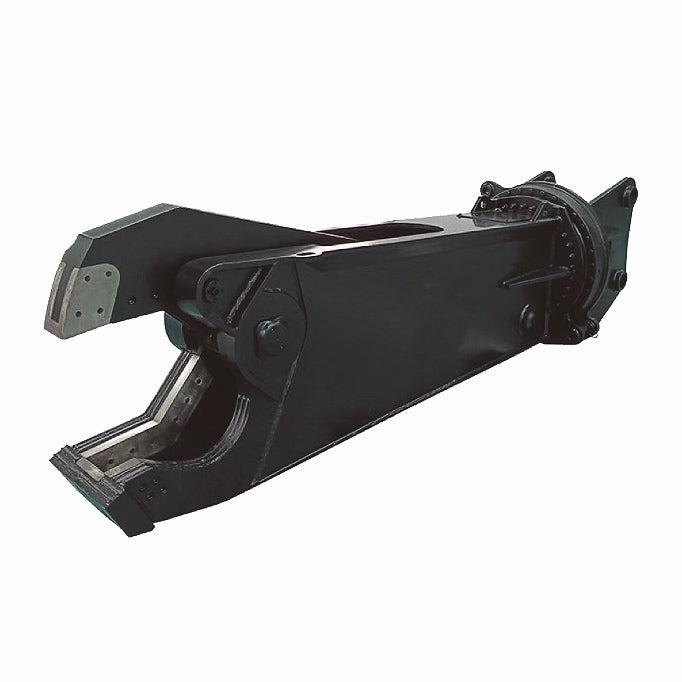

DONSANG Hydraulic Shear :

Model Unit DSS-10 DSS-18 DSS-28 DSS-38 DSS-60 DSS-80
Foream Installation Ton 6-9 12-18 20-28 30-38 46-60 60-80
Boom Installation Ton - - - 20-38 36-60 50-80
Working Pressure Bar 200 250- 300 250-300 300-320 320-350 320-350
Working Flow Lpm 100 90-100 180-220 200-250 250-300 500-600
Weight KG 580 1350 2150 3800/4200 6500/6800 8500/8800
Rotation FLow Lpm 30 30-40 30-40 30-40 30-40 50-60
Rotation Pressure Bar 100 90-100 100-115 100-115 100-115 140-150
Opening MM 300 380 485 600 800 900
Cut Depth MM 310 400 525 630 800 850
Full Length MM 1790 2100 2700 3450/4600 4600/5300 5200/5900
  • Main structure is all made of Hardox steel plates imported from Sweden,and the amount of Hardox materials accounts for about 60% of the weight of the host.
  • Blades are all made of imported materials,which have both toughness and strength,extending the blade replacement cycle.
  • Oil cylinder is equipped with an imported speed-increasing valve,which increases the shearing force and shortens the shearing time.
  • Equipped with 360-degree rotation function,efficient construction.
  • Hydraulic Eagle Shear can be installed on the forearm or directly on the big arm.
    DONSANG Hydraulic Shear is mainly  used for the demolition of steel structure houses,the recycling of scarp metal,the dismantling of large engineering vehicles,trucks,large passenger cars and ships,mainly for cutting round steel,round pipe,channel steel,I-beam,steel plate,cable,etc.For metal materials,compared with the double-cylinder hydraulic shears,the olecranon shears have greater shearing force and are suitable for more severe working conditions.
