Rotating Screening Bucket

Rotating Screening Bucket

Sale Sold out

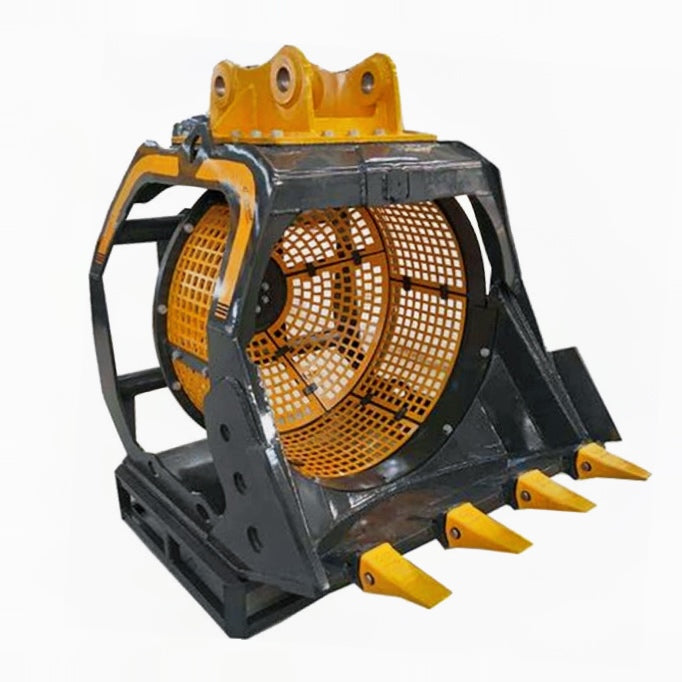

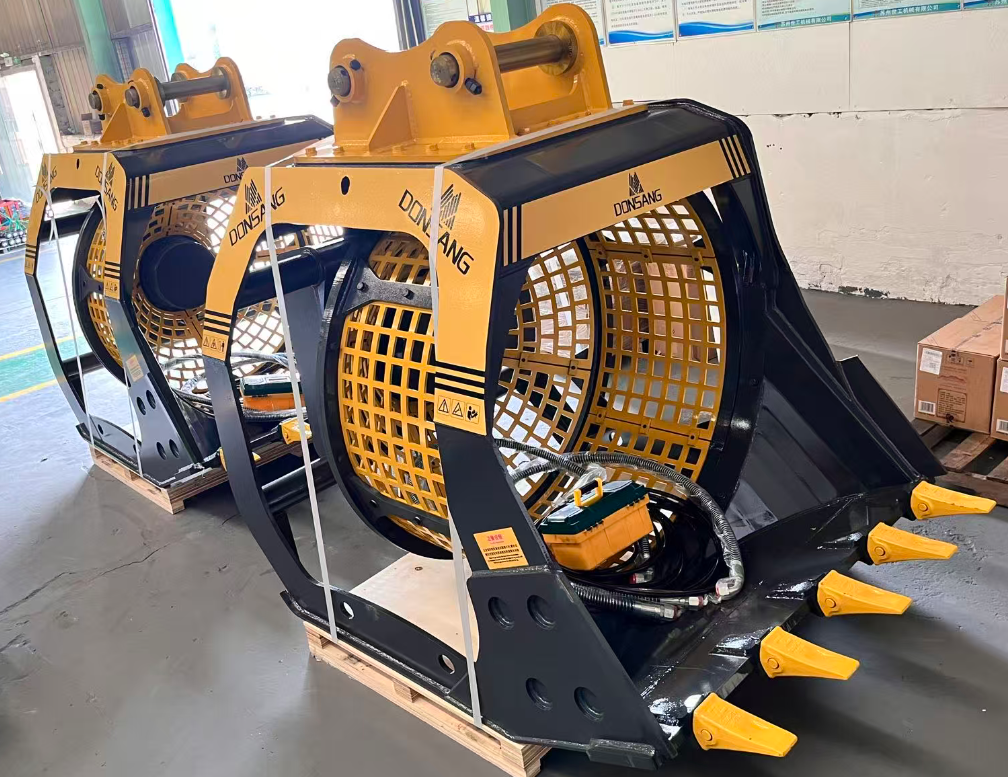

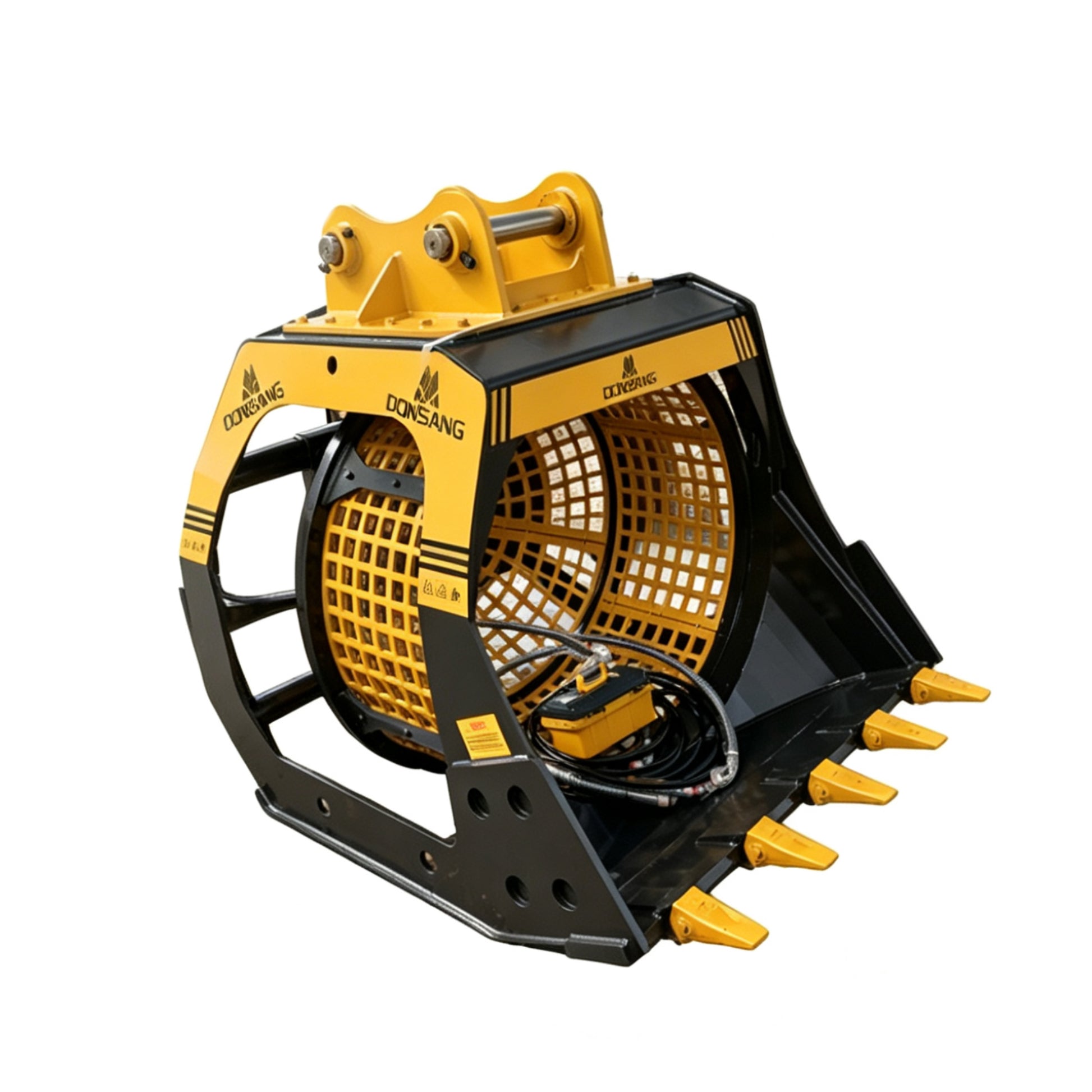

DONSANG Rotating Screening Bucket:

Model Unit DRB80 DRB120 DRB180 DRB280
Machine Class Ton 6-10 12-17 18-23 25-36
Rotary Screen Diameter MM 810 1000 1350 1500
Rotting Speed R/min 65 65 65 65
Working Pressure Bar 220 230 250 250
Oil Flow L/min 60 80 110 110
Weight KG 630 1020 1920 2430



The rotating screening bucket comes equipped with an interchangeable mesh system around the drum inner circumference and replaceable sections in the conical rear area of the drum.Four models are offered to fit mini diggers from 6 tonne to 36 tonne excavators.

There are three types of screening bucket type and blade angle.

A and B are versatile and are suitable for the screening of ordinary dry silt materials.

The C Special type is especially suitable for screening materials with high viscosity sludge.
